Throughput
Up to 800 tests per hour (without ISE module)
Up to 1200 tests per hour (with ISE module)

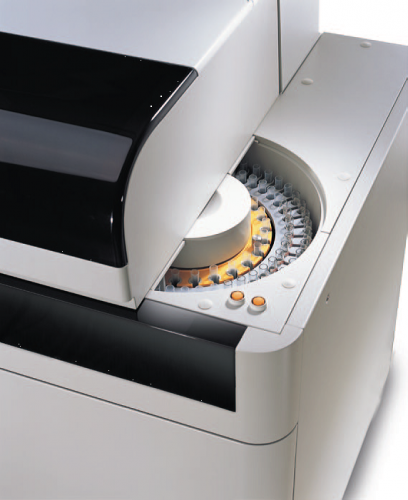

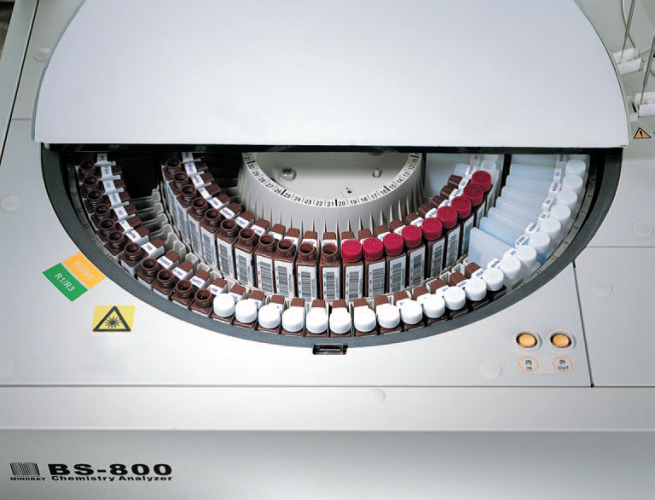

Samples and reagents
Separate samples and reagents disk
140 positions for samples
120 positions for reagents

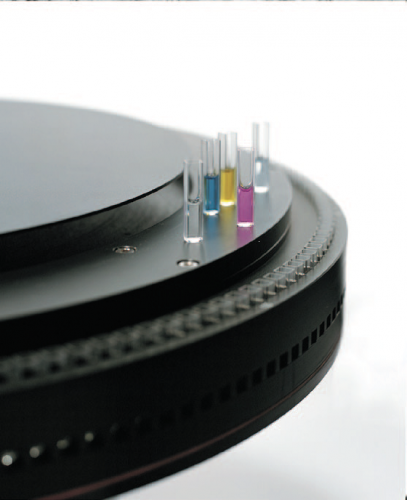

Reaction disc
Reusable cuvettes
90 cuvettes
8-step auto washing station
Optical system
Light source: Halogen-tungsten lamp
12 Wavelenght: 340nm, 380nm, 412nm, 450nm, 505nm, 546nm, 570nm, 605nm, 660nm, 700nm, 740nm, 800nm.
Water consumption
20 L/H
